Small-batch plastic manufacturing demands high precision and speed.
Traditional giant molding presses waste excessive factory floor space.
Deploying a mini injection molding machine optimizes production lines.
It blends a mini injection molding machine with compact agility.
Manufacturers produce intricate medical and consumer parts effortlessly.
This advanced setup satisfies strict lead-free compliance and safety rules.
Our high-efficiency machinery slashes energy consumption during daily runs.
Let us explore how small batch plastic production saves costs.
Small-Batch Plastic Manufacturing Pain Points Solved
Excessive Tooling Costs for Small Production Runs
Traditional high-tonnage molding presses require massive steel molds.
Tooling costs for low-volume orders destroy profit margins quickly.
Small manufacturers struggle with high upfront capital expenditures daily.
High Energy Waste on Compact Plastic Parts
Running massive 300-ton hydraulic presses consumes huge electricity amounts.
Producing small parts like razor bulbs wastes immense power.
Consequently, operational costs surge during short manufacturing runs.
Long Setup Times and Extended Machine Downtime
Changing heavy molds on large machines requires several hours.
Long setup delays disrupt flexible small-batch manufacturing schedules completely.
Factories lose productivity while waiting for complex machine recalibrations.
Explore compact solutions in our mini injection molding machine category now!
Technical Solutions for High-Precision Small Production
Precision High-Pressure Injection Capabilities
Our compact machine delivers a strong 171MPa injection pressure.
It features a generous 121 cm³ injection volume capacity.
This system handles maximum injection weights up to 200g.
High pressure eliminates surface sink marks and flashing defects.
Servo Motor Energy Efficiency and Fast Cycling
An advanced servo motor system powers hydraulic fluid movement.
It reduces power consumption significantly compared to standard pumps.
The system maintains tight temperature control for consistent cycle times.
Read our comprehensive injection molding technical guide for setup advice.
Optimized Clamping Force and Compact Footprint
A robust toggle mechanism delivers 1200 KN clamping force.
The frame accommodates mold sizes up to 420 x 420 mm.
A 350 mm opening stroke ensures easy part ejection.
The compact 4800 x 1250 x 1900 mm dimensions save floor space.

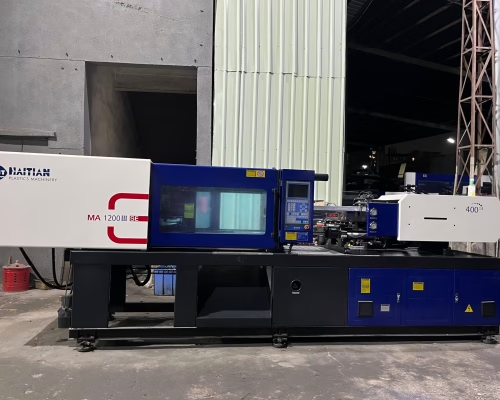

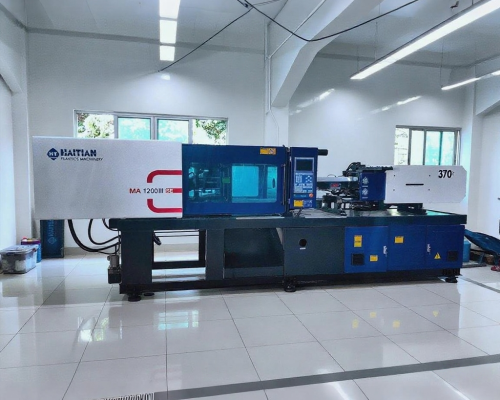

Haitian MA120 Ton Injection Machine Performance Breakdown
The Haitian MA120 Ton machine balances compact dimensions with industrial power:
| Feature Parameter | Standard Heavy Industrial Press | Haitian MA120 Ton Small Machine | Small-Batch Production Advantage |
| Clamping Force | 3000 KN – 5000 KN | 1200 KN (120 Ton) | Ideal for compact, small-batch components |
| Max Injection Weight | 800g + | 200g (PS Material) | High precision without material waste |
| Injection Pressure | 130 MPa | 171 MPa High Pressure | Complete mold filling with zero defects |
| Max Mold Area | 800 x 800 mm | 420 x 420 mm | Faster mold changes and lower tooling costs |
| Drive System | Standard Hydraulic | Energy-Efficient Servo Drive | Lower electricity costs per part produced |
| Machine Dimensions | 8000 x 2000 x 2500 mm | 4800 x 1250 x 1900 mm | Saves up to 40% valuable shop space |
| Total Weight | 12,000+ kg | 4000 kg Compact Frame | Easy floor installation and positioning |
Automated Precision and Easy Maintenance Design
High Accuracy for Specialized Component Production
Specialized parts like disposable razor bulbs require extreme precision.
Modular automation systems handle finished component removal smoothly.
This automation lowers labor costs and boosts total output.
Modular Construction for Rapid Servicing
The machine utilizes a modular mechanical and hydraulic design.
Technicians replace wear parts quickly without long factory delays.
Modular components keep your manufacturing line running continuously.
Check our full small plastic manufacturing machine catalog today!
Frequently Asked Questions
Q1: What plastic materials work best with the Haitian MA120?
It processes PS, ABS, PP, and PE materials with high precision.
Q2: How much power does the servo system save?
The servo motor system cuts energy usage by 20% to 50%.
Q3: What is the maximum mold size for this machine?
The platen accommodates custom and standard molds up to 420 x 420 mm.
